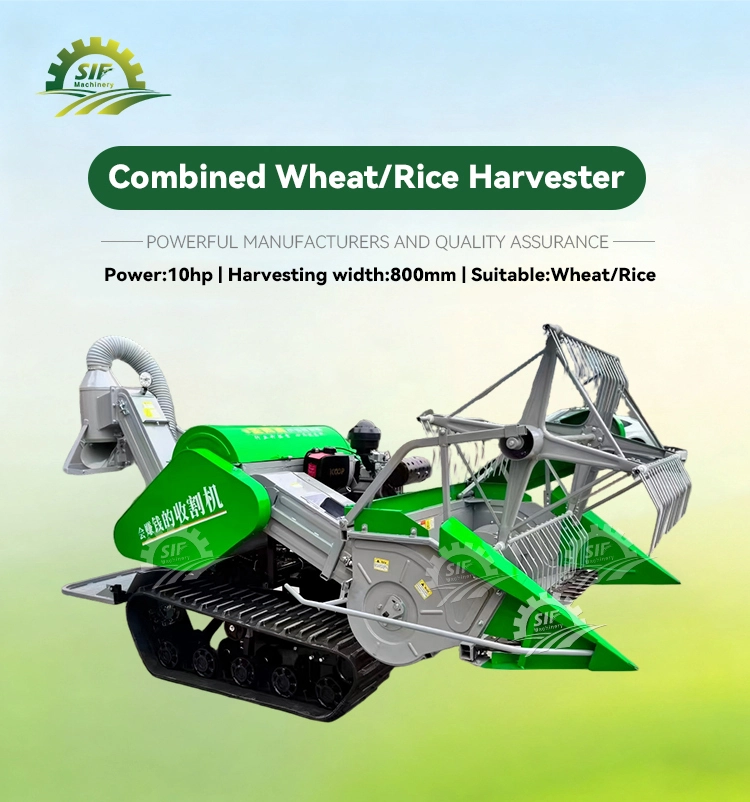

Crawler Rice Wheat Combine Harvester SA1008
Crawler Rice Wheat Combine Harvester SA1008 features 0.8m cutting width, 6.9KW engine and 395KG lightweight design. High efficiency, low grain loss and fuel saving, perfect for small farms, mountain terraces and muddy paddy fields.
5.0
Type:
Harvesting Machine
Application:
Rice&Wheat harvesting
Model:
SA1008
Voltage:
NO
Powder:
6.9kw
MOQ:
1 set
Packaging:
Wooden case
Price terms:
FOB,CIF,EXW,DDP,FCA
Payment Methods:
TT
Payment terms:
30% deposit before production,balance before shipment
Shipping:
By sea
Lead time:
3~7 days
Warranty:
1 Year
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Information
The Crawler Rice Wheat Combine Harvester SA1008 is a compact all-in-one harvesting machine designed specially for smallholder farms, hilly terraces and scattered small farmland.
This crawler rice wheat combine harvester integrates cutting, feeding, threshing, winnowing and grain collection into one unit, realizing automatic one-pass harvesting and fully replacing traditional manual work.
Adopting crawler self-propelled structure, the machine is 2500×1150×1500mm in dimension and only 395KG in weight, flexible to steer and easy to transport. Powered by KD188FAE air-cooled diesel engine with 6.9KW power and 3600r/min rated speed, it keeps stable output and works well even on dense or lodged crops.
Equipped with 0.8m cutting width and 0.6kg/s feeding capacity, the working efficiency reaches 0.8–1.5 mu/h. Matched with spring-tooth reel, telescopic auger, axial flow threshing drum, grid sieve and centrifugal blower, it delivers clean grain with ultra-low loss rate.
With over 180mm ground clearance and wear-resistant rubber tracks, it runs stably on muddy paddy fields, slopes and rugged terrain without slipping. Simple gear control is friendly for new operators. Modular structure ensures easy daily maintenance, and standard spare parts are easy to source, making it highly cost-effective for small-scale farming.
Product parameters
|
Parameter |
Details |
|
Model |
SA1008 |
|
Structure Type |
Self-walking Crawler Full-feeding |
|
Overall Dimensions (L×W×H) |
2500 × 1150 × 1500 mm |
|
Total Weight |
395 kg |
|
Engine |
KD188FAE Air-cooled, 6.9 KW / 3600 r/min |
|
Cutting Width |
0.8 m |
|
Rated Feeding Capacity |
0.6 kg/s |
|
Working Efficiency |
0.8–1.5 mu/h |
|
Fuel Consumption |
≤35 kg/hm² |
|
Threshing System |
Axial flow rod-tooth drum (360×648 mm) |
|
Crawler System |
66mm pitch × 34 links × 250mm width, track gauge 550mm |
|
Minimum Ground Clearance |
≥180 mm |
Key Advantages
● Powerful & Fuel-saving
6.9KW air-cooled diesel engine with steady power, low fuel consumption (≤35kg/hm²), low failure rate and long service life.
● Clean Threshing & Low Loss
Axial flow threshing drum with multi-layer cleaning, clean grain ready for direct bagging, spring-tooth reel reduces lodging grain loss.
● Multi-crop Compatible
No complex modification needed; suitable for rice, wheat, barley, oats and other dwarf grains, meeting multi-season needs.
● Easy Operation & Low Maintenance
Simple gear layout and handle, easy for beginners to learn; key parts accessible, universal and affordable wearing parts.
● Strong Terrain Adaptability
High ground clearance and anti-slip crawler, stable in wet paddy fields, muddy land and slopes, anti-sink for all-weather use.
Application Scenarios
✔ Mountain & hilly terraced fields
✔ Smallholder family scattered farmland
✔ Muddy and waterlogged paddy fields
✔ Irregular edge plots and orchard gaps
✔ Agricultural cooperative small separated plots
Production&packing
Here are the production&packing of he Crawler Rice Wheat Combine Harvester SA1008. We adopt professional standardized production, conduct strict full inspection before shipment, and apply solid and flawless packaging to ensure safe global delivery.
PRODUCTION IN WORKSHOP
INSPECTION BEFORE PACKING
PACKING IN WOODEN CASE
FAQ
1
What is the overall performance and power configuration of the SA1008 combine harvester?
The Crawler Rice Wheat Combine Harvester SA1008 is fitted with premium KD188FAE air-cooled diesel engine, delivering rated power of 6.9KW and rated speed of 3600 revolutions per minute. The power output is steady and abundant with outstanding overload resistance, so it will never stall or run underpowered when handling dense crop clusters or lodged rice and wheat stalks. Adopting full-feeding axial flow threshing structure, it comes with a standard 0.8m cutting width and 0.6kg/s feeding capacity, enabling continuous feeding and threshing without blockage under normal crop density. Its working efficiency reaches 0.8 to 1.5 mu per hour, far exceeding the efficiency of manual harvesting and greatly shortening the harvest cycle. The whole machine weighs only 395KG with compact dimension of 2500×1150×1500mm. The crawler walking system adopts 550mm track gauge and over 180mm minimum ground clearance, ensuring stable driving performance on muddy paddy fields, sloped dry land and rugged mountain terraces. The power system, traveling system and threshing cleaning system are perfectly matched with balanced comprehensive performance, low failure rate and stable continuous working ability for long-term harvest seasons.
2
Is the SA1008 harvester easy to operate for users without mechanical experience?
Yes, the SA1008 crawler combine harvester is humanized designed fully according to ordinary farmers’ usage habits, focusing on simple operation and quick learning curve. The gearbox is equipped with intuitive first and second working gears, neutral gear, forward and reverse gear, with integrated simple control handles and no complicated buttons or tedious operation procedures. Even operators who have never used agricultural machinery can master basic driving and harvesting skills within half an hour with simple guidance. It features flexible steering and small turning radius, allowing in-situ turning in narrow fields without crushing surrounding crops. In daily maintenance, the open structural layout places engine air filter, oil port, threshing drum and sieve in easy-access positions. Users can finish daily inspection, oil change and dust cleaning by themselves without professional technicians. Wearing parts such as cutter blade, rubber track and transmission belt are all standard universal accessories, available locally at low cost without customized ordering, greatly lowering the usage threshold and later maintenance difficulty.
3
What field environments is the SA1008 suitable for, and can it work in muddy fields and mountain terraces?
The SA1008 is specially developed for complex terrain and small scattered farmland, showing excellent adaptability in various harsh field conditions. For southern waterlogged paddy fields, it uses thickened widened agricultural rubber crawler with reasonable grounding area and strong load-bearing capacity, effectively preventing slipping and sinking on soft muddy soil. The raised ground clearance over 180mm avoids bottom mud accumulation and crop root scraping during operation. For mountainous hilly terraces with narrow roads and gradient slopes, its lightweight compact body is easy to transport on rural mountain roads, and the low-center-of-gravity crawler structure guarantees stable driving on gentle slopes without tilting risk. It also perfectly fits irregular scattered plots, interval farmland beside orchards and field corner small land that large combine harvesters cannot access. Whether it is dry land wheat harvesting, wet land rice harvesting, flat row planting or mountain scattered small plots, SA1008 can adapt perfectly with strong terrain compatibility and wide regional applicability.
4
How about the grain cleaning effect and loss rate of the SA1008 during harvesting?
The SA1008 is equipped with a professionally optimized threshing and cleaning system specially tuned for rice and wheat harvesting. It adopts eccentric spring-tooth reel that gently lifts lodged and bent crop stalks and delivers them evenly to the cutting table, avoiding grain falling caused by messy lodging. The spiral telescopic finger auger ensures smooth crop feeding without congestion or backflow. The core 360×648mm axial flow rod-tooth threshing drum provides long threshing stroke to separate grain from straw thoroughly without kernel damage. Cooperated with grid sieve and large-diameter centrifugal blower, it performs multi-layer winnowing and screening to separate chaff, straw debris and dust completely from grain. The final discharged grain is clean with very few impurities and can be directly packed into bags for storage without secondary manual cleaning. The overall harvesting loss rate is controlled at an extremely low level, much better than manual harvesting and ordinary small harvesters, effectively protecting annual harvest yield and improving actual planting income for farmers.
5
What crops can the SA1008 harvest, and does it support multi-crop universal use?
The SA1008 mini combine harvester is primarily optimized for rice and wheat harvesting, and it can also handle multiple small-grain cereal crops with simple manual adjustment, realizing genuine multi-crop universal operation. Its main applicable crops include early rice, late rice, hybrid rice and dry land wheat as well as plateau wheat. Besides these main varieties, users can adjust reel height, replace sieve with different mesh sizes and properly regulate fan air volume to smoothly harvest barley, oats, rye, millet and other similar dwarf stalk grain crops. The cutting system, feeding system and threshing system all have wide adjustable ranges to adapt to different stalk heights, crop densities and grain particle sizes. Farmers only need one single machine to finish harvesting multiple crops in different seasons, saving extra cost of purchasing multiple professional harvesting devices. It is highly suitable for farmers and agricultural cooperatives with mixed grain planting, significantly improving equipment utilization rate and economic return.
6
What is the fuel consumption level of the SA1008, and is it cost-effective for long-term use?
The SA1008 takes energy saving and low consumption as one of its core design advantages, equipped with fuel-efficient air-cooled diesel engine adopting optimized combustion technology to balance strong power and low fuel consumption. Its unit area fuel consumption is strictly controlled within ≤35kg per hectare, keeping the fuel cost per mu of harvesting at a very economical level. Compared with large combine harvesters with high fuel waste and manual harvesting requiring massive seasonal labor hiring, SA1008 has obvious cost advantages in daily operation. With working efficiency of 0.8–1.5 mu per hour, one machine can replace the workload of several laborers, saving a large amount of labor expenses during harvest season. Meanwhile, the whole machine adopts reasonable mechanical structure with low failure rate and long service lifespan. Wearing parts are cheap and easy to replace without high later maintenance investment. One-time purchase can serve many consecutive years, and the equipment cost can be fully recovered within one or two harvest seasons. For smallholder farmers and small agricultural cooperatives, it is a typical low-investment, low-consumption and high-return agricultural machine with excellent long-term cost performance.
7
How about the build quality and service life of the SA1008, and what after-sales support is provided?
The SA1008 mini crawler combine harvester adopts thickened high-quality steel plate frame and integral welding process, making the whole body firm, stable and not easy to deform or rust after long-term outdoor field operation. Key components including cutter blade, threshing drum, reel and transmission shaft are manufactured with high-strength wear-resistant materials, featuring strong impact resistance and long service life. The rubber crawler is made of reinforced wear-resistant formula material, resisting abrasion from mud, gravel and straw without easy cracking or peeling. Every unit passes strict factory inspection including no-load running test, field simulation harvesting test and terrain walking test to ensure stable performance before delivery. In terms of after-sales service, we provide one-year warranty for manufacturing non-human damage faults, long-term supply of original factory spare parts at wholesale price, and professional remote technical guidance for installation, operation, daily maintenance and common fault troubleshooting. We also support online video teaching to help users quickly master operation and maintenance skills, completely solving later usage worries for global buyers.
8
Is the SA1008 convenient for transportation and transfer between different farmlands?
The SA1008 is designed with compact structure and lightweight body fully considering frequent transfer demands of scattered small farmland. The overall size is small and net weight is only 395KG, no need for large professional transport vehicles. It can be easily loaded and transported by ordinary pickup trucks, agricultural tricycles and small trailers, perfectly adapting to rural mountain roads with narrow width and limited load capacity. The crawler structure enables self-driving loading and unloading with simple auxiliary padding, no hoisting equipment required. When transferring between adjacent fields in the same village, it can directly travel steadily on rural hardened roads and dirt roads without damaging road surface. The reel part can be slightly folded to reduce overall width for smoother passage through narrow village lanes and field ridges. For farmers owning multiple scattered plots in different locations, the machine can be transferred quickly and flexibly without transportation restrictions, greatly improving the flexibility and actual utilization efficiency of harvesting operations throughout the whole harvest period.
